Mount Solar System Lithium Batteries Energy Storage System Battery Pack

Name: Mount Solar System Lithium Batteries Energy Storage System Battery Pack
Brand: zzlysun
Price: 176.00 USD

Quality Mount Solar System Lithium Batteries Energy Storage System Battery Pack for sale

Brand Name : zzlysun

Certification : CE/ROHS/UN38.3/FCC/

Model Number : LYS51.2200

Place of Origin : Henan, China

Packaging Details : Plywood Case

Supply Ability : 1000 Carton/Cartons per Day

MOQ : 10 kilowatts

Price : $176.00/kilowatts 10-19 kilowatts

Warranty : 5years

Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Su

Battery Size : 10.24KWH

Weight : 116

Product name : Lifepo4 Low Voltage Battery

Nominal Dis/Charge Voltage : 43.2~57.6V

Communication : Default:RS485/RS232/CAN Optional:WiFi/4G/Bluetooth

Gross Weight : 116kg

Package Size : 510*610*260mm

Relative Humidty : 65+20%RH

Discharge Current : 50A

Cycle : 3000~6000cycle@DOD 80%/25'C/0.5C

Installation : Stack Installation

OEM/ODM : YES

Port : Shanghai/Ningbo/Qingdao/Guangzhou

Contact Now

Cheap high quality mount home solar energy storage system battery pack lithium battery 51.2v 200ah lifepo4

Product Description

Mount Solar System Lithium Batteries Energy Storage System Battery Pack

❖ General mode:

The Stack series adopts high-quality lithium iron phosphate batteries, equipped with an intelligent BMS battery management system, long cycle life, high safety performance, beautiful appearance, free combination, and

convenient installation. LCD display, visualization of battery operating data. Compatible with most solar inverters, providing efficient energy for photovoltaic off-grid households, and commercial and other electrical equipment.

Specification

Model	LYC48100			LYC48200
Combination	15S1P	16S1P	15S1P	16S1P
Rated Energy	4.8kwh	5.12kwh	9.6kwh	10.24kwh
Usable Energy	14.4kwh	19.2kwh	24kwh	28.8
Standard Discharge current	50A	50A	50A	50A
Max.discharge current	100A	100A	100A	100A
Working Voltage Range(VDC)	40.5~54	43.2~57.6	40.5~54	43.2~57.6
Standard Voltage	48VDC	51.2VDC	48VDC	51.2VDC
Max .Charge Current	50A	50A	100A	100A
Max.charge Voltage	54V	57.6V	54V	57.6V
Cycle	3000~6000cycles @DOD 80%/25℃/0.5C
Working humidity	65±20%RH
Cooling method	Natural cooling
Operating Temperature	-10~+50℃
Installation	Stack installation
Protection level	IP20
Max of parallel	15PCS
Warranty	5·10 years old
Communication	Defualt:RS485/RS232/CAN Optional:WIFI/4G/Buletooth
Working altitude	≤2500m
Certificate	CE/ROHS/FCC/UN38.3 /MSDS
Product Size	400200460mm			400240460mm
Package Size	460230545mm			460270545mm
Net Weight	41kg	45kg	101kg	105kg
Gross Weight(kg)	49kg	55kg	11kg	115kg

Company Profile

❖ lifepo4 lithium battery

1.Shell Material:aluminum case

2.Battery Cell:CATL /EVE A/B Cell

3.Max Parallel:15pcs

4.Better communication to inverter and better after service, better compatible, easy maintenance.

5.OEM/ODM:Voltage,capacity,size/color customization.

6.Protection:Low Voltage,Over voltage protection,over current protection,over temperature protection,balanced protection,over discharge protection,short circuit protection.

❖ Prismatic cells

1.Original from CATL/EVE battery cell A,Lifespan: 6000cycles@80% DOD, Warranty time: 10years.

3000~6000 cycle@DOD 80%/25'C/0.5C

2..Original from CATL /EVE battery cell B,Lifespan: 3000cycles@80% DOD, Warranty time: 5years.

❖ Feature

1. Stacked installation, easy to install, mostly used in home energy storage systems
2. RS485/RS232 and CAN communication functions, can communicate with the host computer and inverter
3. Designed with switch, can control the lithium battery, with a power display, with DC protection circuit breaker
4. 15 strings can be used as a 48V system, or 16 strings can be used as a 51.2V system
5. Optional Bluetooth and WIFI function, display screen
6. the Multiple battery packs are connected in parallel, up to 15 in parallel, which is very convenient to apply to the required large
In the large capacity energy storage system
7. The default charge and discharge current is 0.5C, 1C can be customized (other parameters need to be customized)

❖ Compatible inverter

The BMS can be communicate with the most inverter,such as GOODWE,GROWATT,SOFAR,SOLARFARM,VICTRON ENERGY,SOLAX,LU POWER,MUST SOROCEC,MEGAREVO,DEYE,SUNSYNK,SOLIS,PYLONTECH,SRNE.

❖ Advantage

The lithium battery price is different depend on the battery prismatic cells brand A or B,the suitable battery will be determined by your budget.

❖ Certification

❖ Certificate
1.The lithium Battery will past the certificate ,such as CE ,ROHS,FCC,UN38.3,MSDS.

2.Voltage,capacity,size/color customization,OEM/ODM Service can be provided according to customer needs.

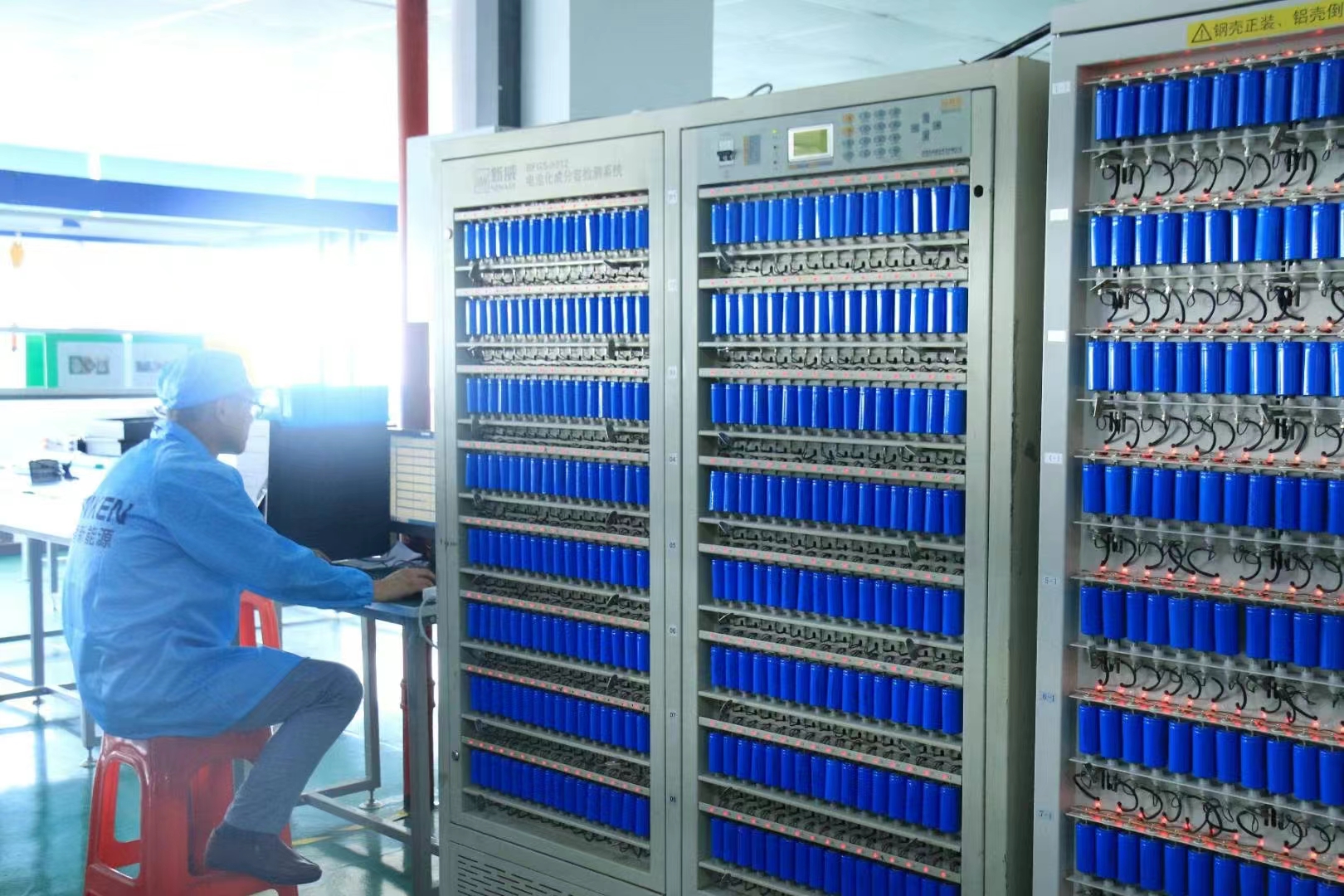

Production Workroom

Customer Photos

Packing & Delivery

❖ Plywood Package

The package will be with plywood Case in order to avoid the damage from the transportation,it commonly has common plywood package &Dangerous package.Any special requirement about the package,pls advice us in advance!

FAQ

1.What kind of product can you provide ?
Re:We can provide the cabinet lifepo4 battery,power wall lifepo4 battery,stack energy storage battery,high voltage energy storage lithium battery,replace GEL battery energy storage battery,ESS Rack/Cabinet lithium battery energy storage system,ESS Stack lithium battery energy storage system.
2.How much lithium battery can your company provide?
Re:We can provide the home use solar system from 2.4kwh to 180kw and also provide the ESS solar system from with excellent design.

3.Are you acceptable with the OEM /ODM Order?
Re:Voltage, capacity, size/color customization, OEM/ODM services can be provided according to customer needs.

4.What is your warranty and after-sales policy?
Re:Warranty term:A+ Prismatic cell battery for 10 years old, B Prismatic cell battery for 5 years old. Any quality problem, will let us know freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
